Beichen XZF450 High Speed Automatic Oblique and Straight Line Edge Banding Machine by RUIQI

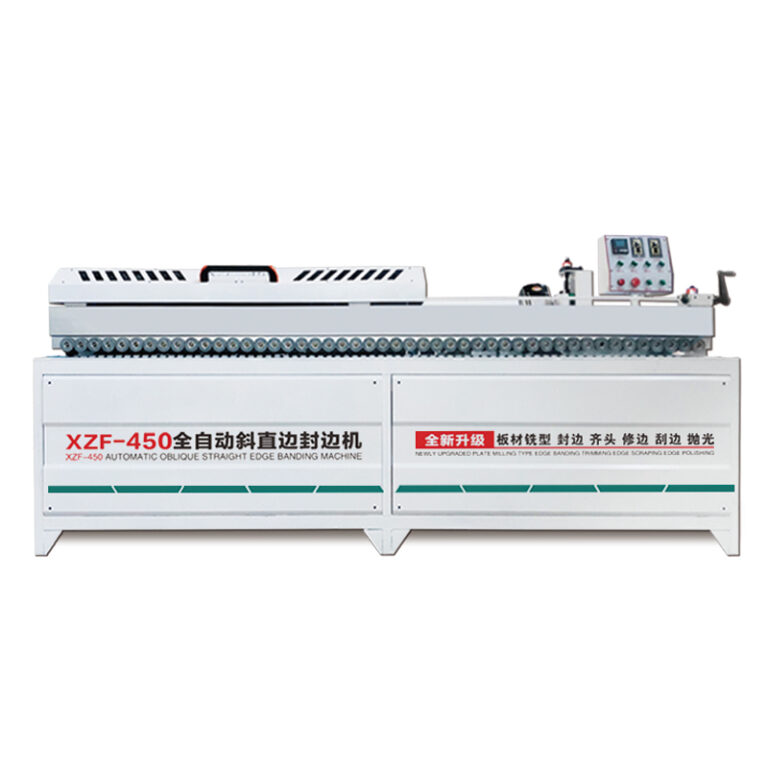

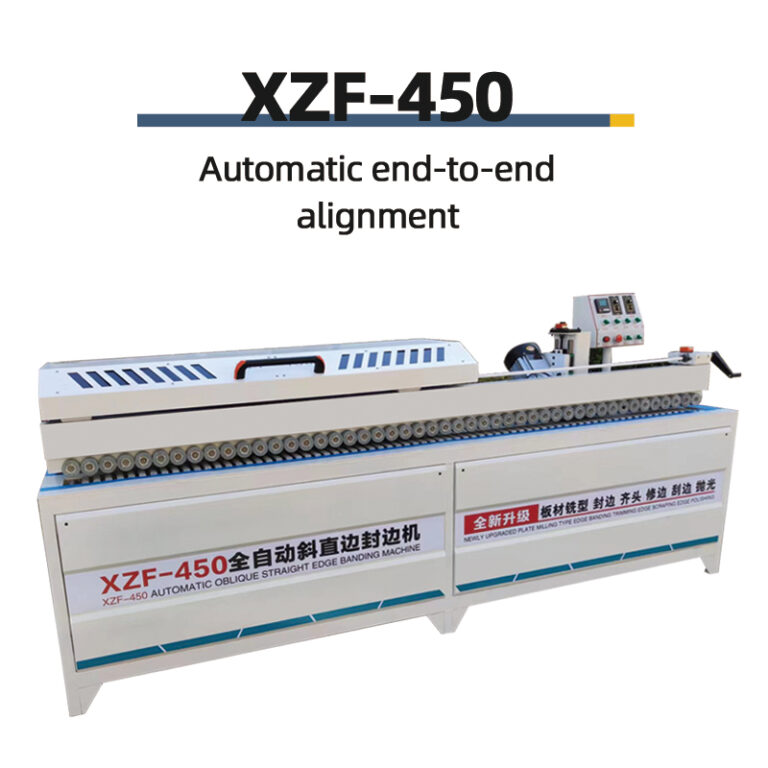

Beichen-designed and manufactured XZF450 Oblique Straight Edge Banding Machine is a high-speed, multi-functional woodworking system for use in oblique and straight-line edge banding applications. Its cutting-edge technology and ease of use have made it a favorite among panel and furniture producers. High-performance capabilities paired with accuracy engineering make it suitable for mass production units that require efficiency and quality.

Key Features of the XZF450 Edge Banding Machine

Maximum Efficiency through High-Speed Capability
The XZF450 has a panel feed speed of 12m/min, which allows high-speed processing without any compromise on edge finish quality. It is thus highly ideal for large-scale production lines in cabinetry, furniture manufacturing, and woodworking contracting businesses.

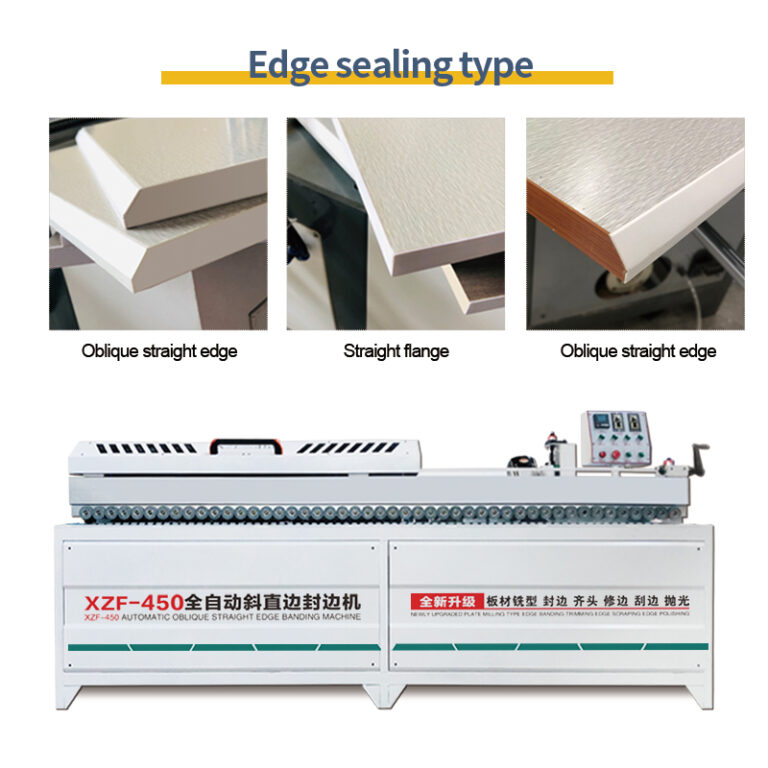

Oblique and Straight Line Edge Banding Capabilities
This machine is ideal for various woodworking requirements through effective performance of straight and slant edge banding operations. 30°, 45°, or 60°, the XZF450 provides even surface finishes to satisfy various design requirements.

Multi-Functional Operations
XZF450 has various functions, including:

Pre-Milling: Provides a clean and accurate surface prior to banding.
Gluing: Evenly applies glue for smooth and secure binding.
Trimming: Fine and coarse trimming is carried out to yield a perfect finish.
Corner Trimming: Edge shaping of the panels is perfected for contemporary design.
Scraping and Buffing: Shining and smoothness are attained to the finishing edges for perfection.
Easy Use and Long Durability Design
Being equipped with heavy-duty material like bearings, motors, gearbox, and PLC system, XZF450 enjoys durability and a long lifespan. Besides, the machine comes equipped with an easily usable operating system, thus recommended for beginners as well as professional users.

Customizable Voltages
The XZF450 provides customizable voltage options (220V/380V/customization) to make it readily compatible with a variety of electrical systems.

Compact But Powerful
In spite of the high-tech performance, the XZF450 is comparably compact at 300(L) x 65(W) x 135(H) cm. It maximizes workshop space while providing excellent capability.

Superior Technical Features

Total Power: 9.5KW (Pre-milled motor: 4KW)
Edge Banding Thickness Range: 0.3–3mm
Edge Banding Height: 0–50mm
Minimum Panel Dimensions: 30cm x 15cm
Weight: 430kg

These technical capabilities make the XZF450 a robust and versatile system for custom furniture, MDF panels, and cabinetry production.

Applications of the XZF450 Edge Banding Machine

The XZF450 is perfect for:

High-End Furniture Production: Where precision and aesthetics are top priorities.
Building Material Shops: For producing MDF panels, particle boards, and additional paneling needs.
Interior Design Workshops: Customizing panel furniture with angled or straight edge designs.
Why Choose Beichen’s XZF450 Edge Banding Machine?

Beichen’s XZF450 Oblique Straight Edge Banding Machine is a high-speed, efficient, and versatile machine engineered for industrial woodworking applications. Its dual oblique and straight-edge banding functionality ensures it meets a broad range of production demands. Whether creating sleek furniture panels for a modern design or handling bulk manufacturing processes, the XZF450 delivers consistent, professional results.
