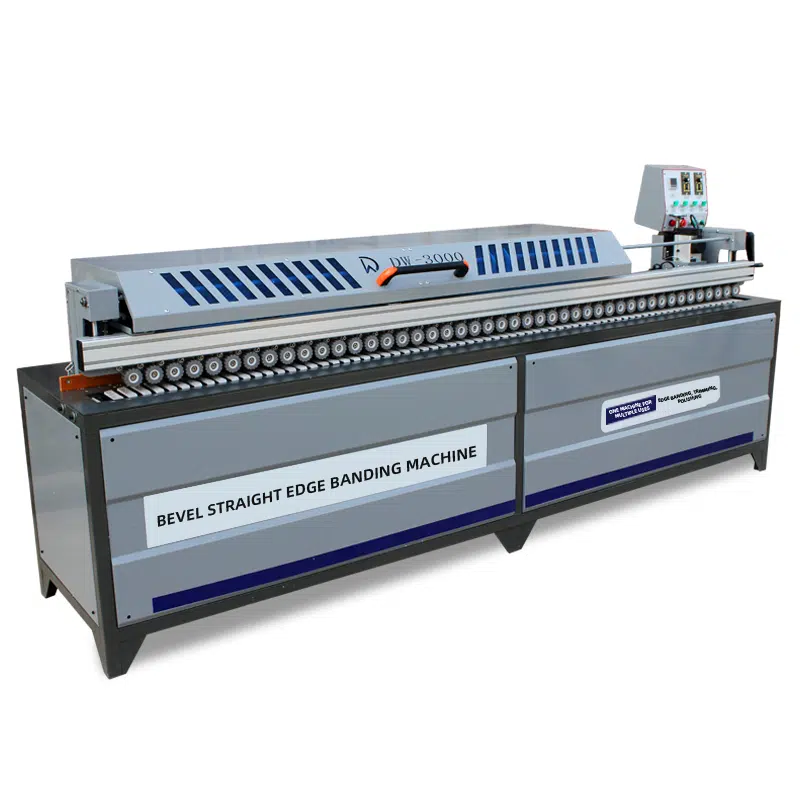

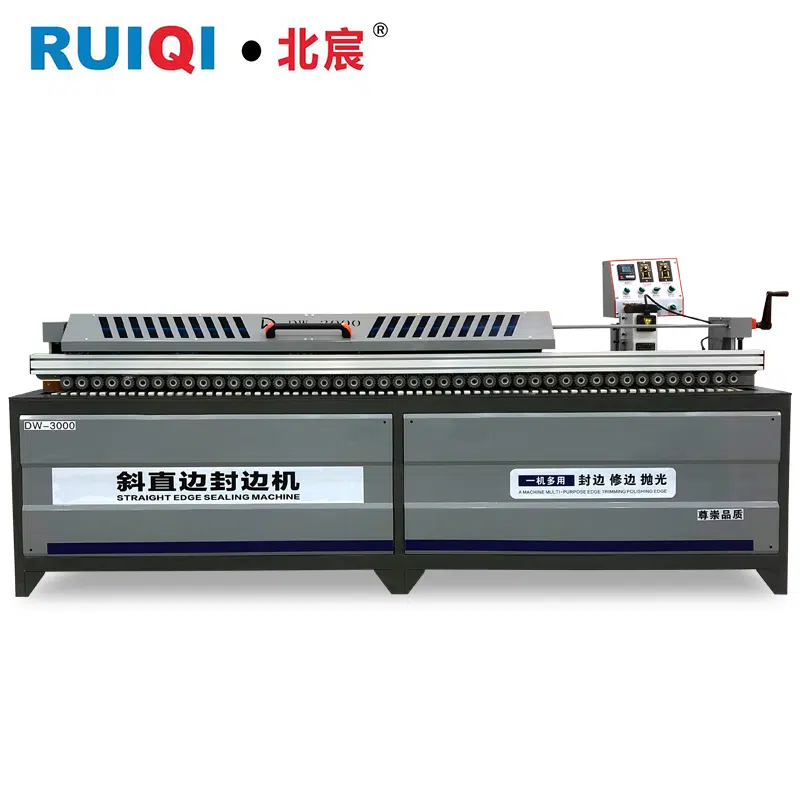

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine

Features
●Pre-milling
●Bevel straight edge banding 30°-90°
●Imported motor, stable operation
●High-quality electrical components
●Automatic and precise gluing
●Independent controller
●Easy to open the chassis
●Double-sided gluing
●Double-row pressure wheel
●Automatic feeding with crawler belt
●Handle height adjustment, digital display of code meter
●13.12″ large polishing wheel
●Gear transmission glue pot
●Spindle silent motor
●Automatic belt breaking
●Double-sided polishing and trimming
●Aluminum alloy integrated pressure beam
●Stretching board auxiliary device
●Better effect and efficiency
●Glue pot capacity : 4000ml
●Product Size : 299*65*130CM
●Product weight : 430KG

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine

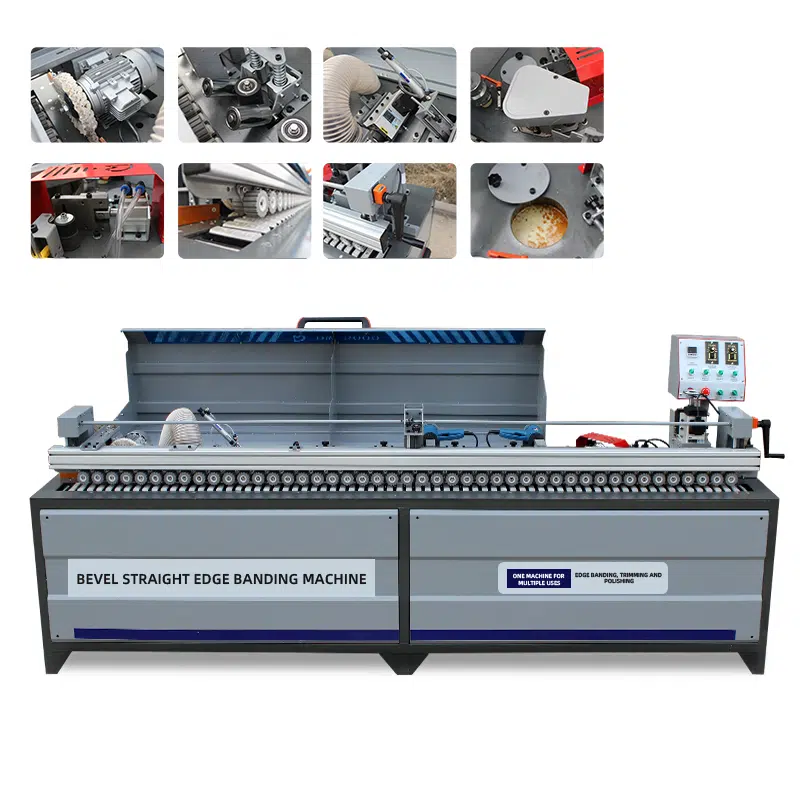

The Straight Bevel Edge banding machine with Large-scale gluing bearing, edge band slotting device, slotting height can be adjusted, edge banding is more compliant, double cylinder feeding belt is more stable and not shaking, double heat gun design, heating edge banding is more obedient, 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor, the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor, with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line, the finish is better

Service and Guarantee:

  • Customization of color, logo, shape, etc. is available.
  • Become an exclusive regional agent for Ruiqi.
  • Free photo and video services for agents.
  • Lifetime technical support and one-year warranty included.
  • Various payment methods and door-to-door shipping offered.

重量 430 公斤
尺寸 29965130 × 65 × 130 厘米
Model

DW3000

Total power

11KW

Voltage

380V/415V

Minimum length of sheet

30CM

Minimum width of sheet

15CM

Edge banding height

0-50MM

Edge banding thickness

0.3-3MM

Edge power/speed

0.16KW 0-12M/min

Pre-milling motor

2.2KW

Air source pressure

0.5-0.7Mpa

Transmission power/speed

180W 0-12M/min

Glue pot capacity

4000ml

Trimming power/speed

2.2KW*2

Vacuum power

550W

Polishing power/speed

0.4KW*2

Package Size

312*74*115CM
