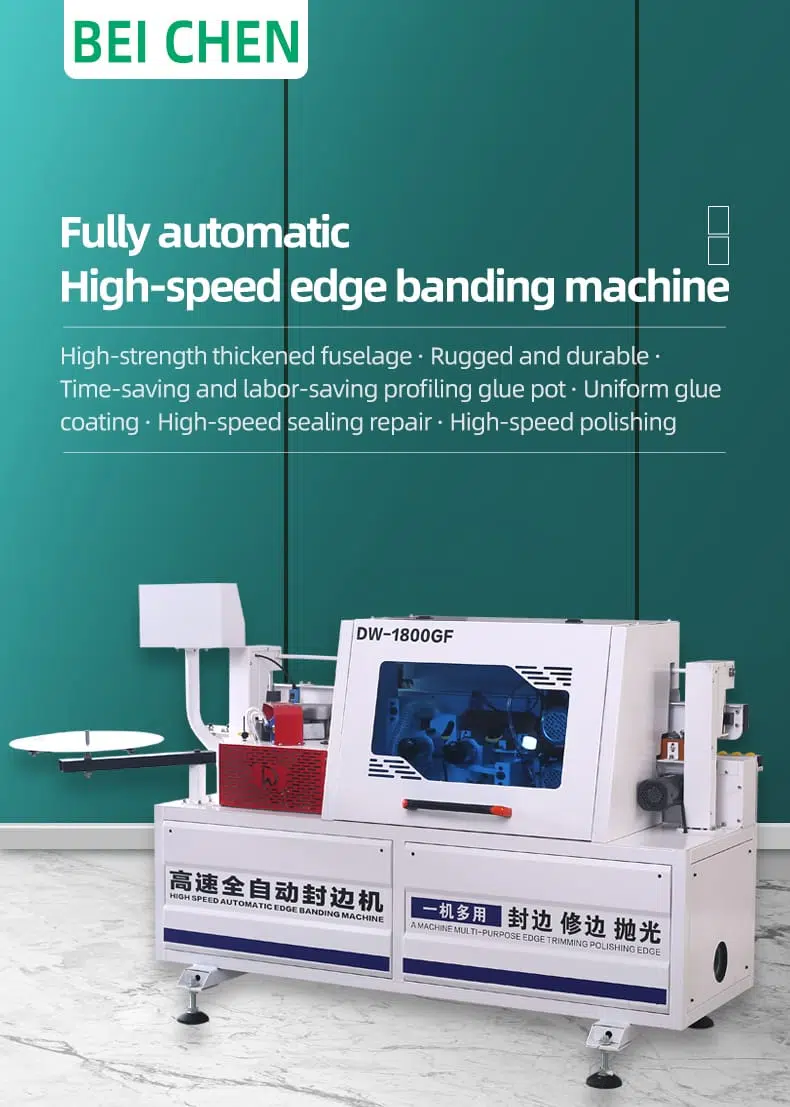

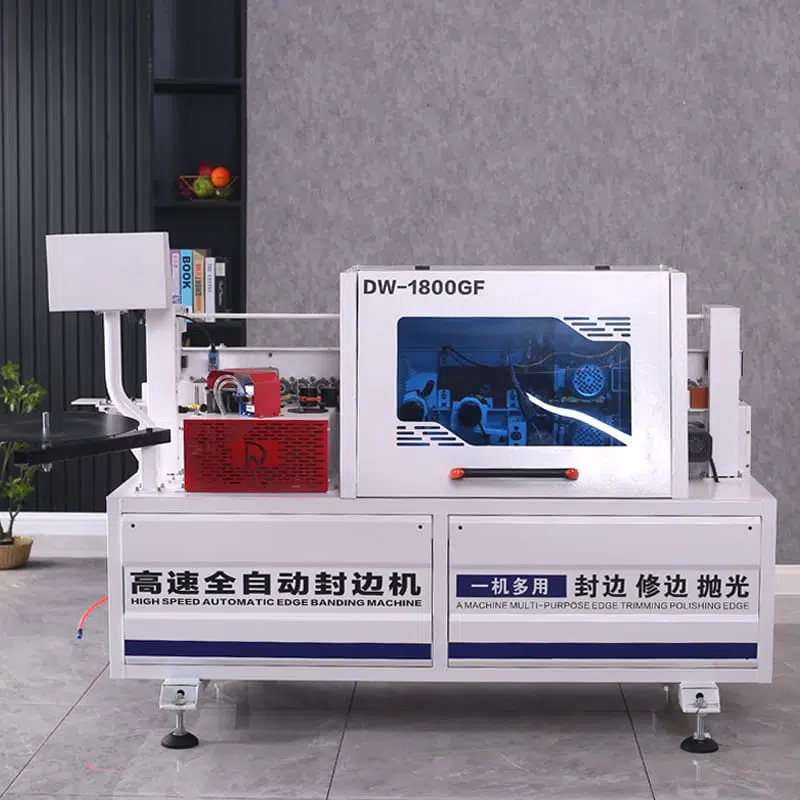

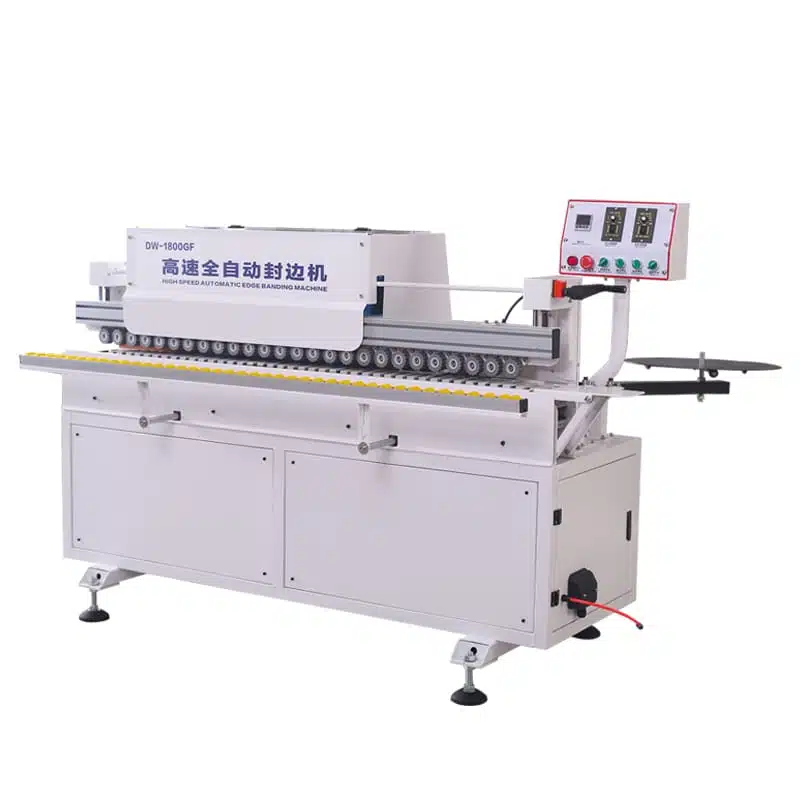

PVC Straight Automatic Edge Banding Machine Edge bander Machine for Furniture DW1800

Features
●Straight edge banding machine
●Imported motor, stable operation
●High-quality electrical components
●Automatic and precise gluing

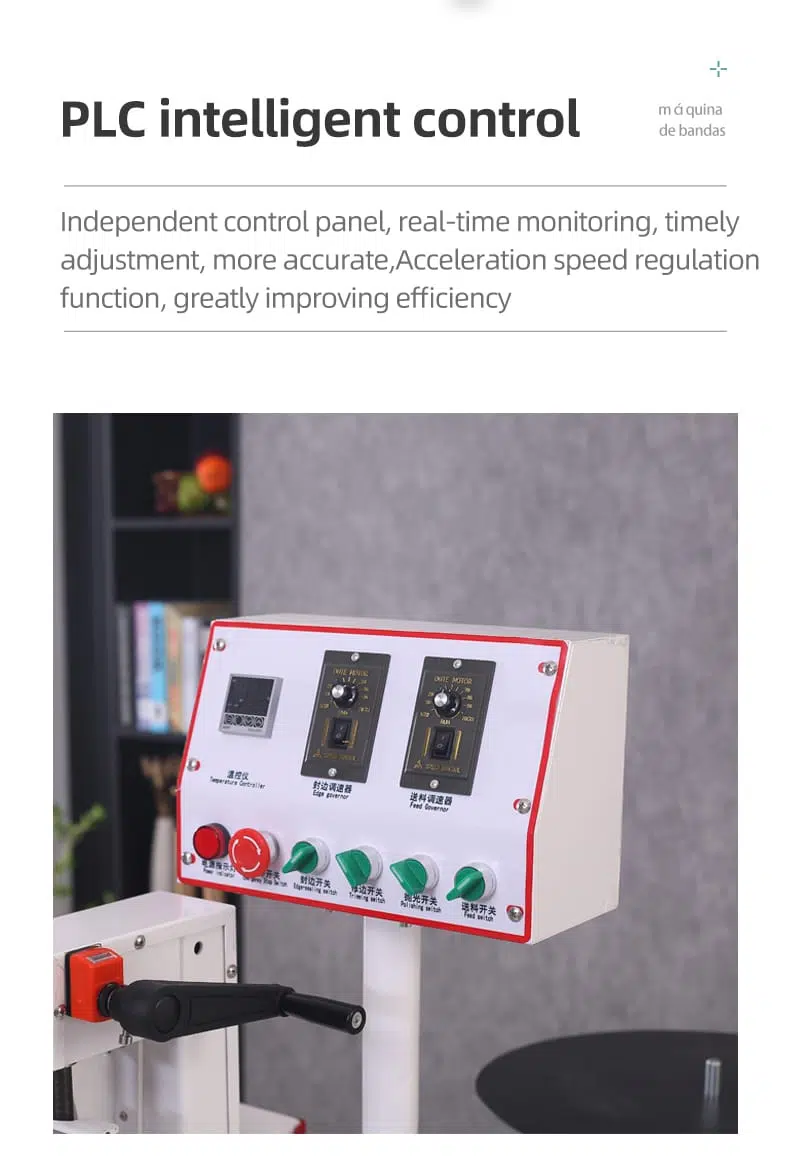

●Independent controller
●Easy to open the chassis
●Double-sided gluing

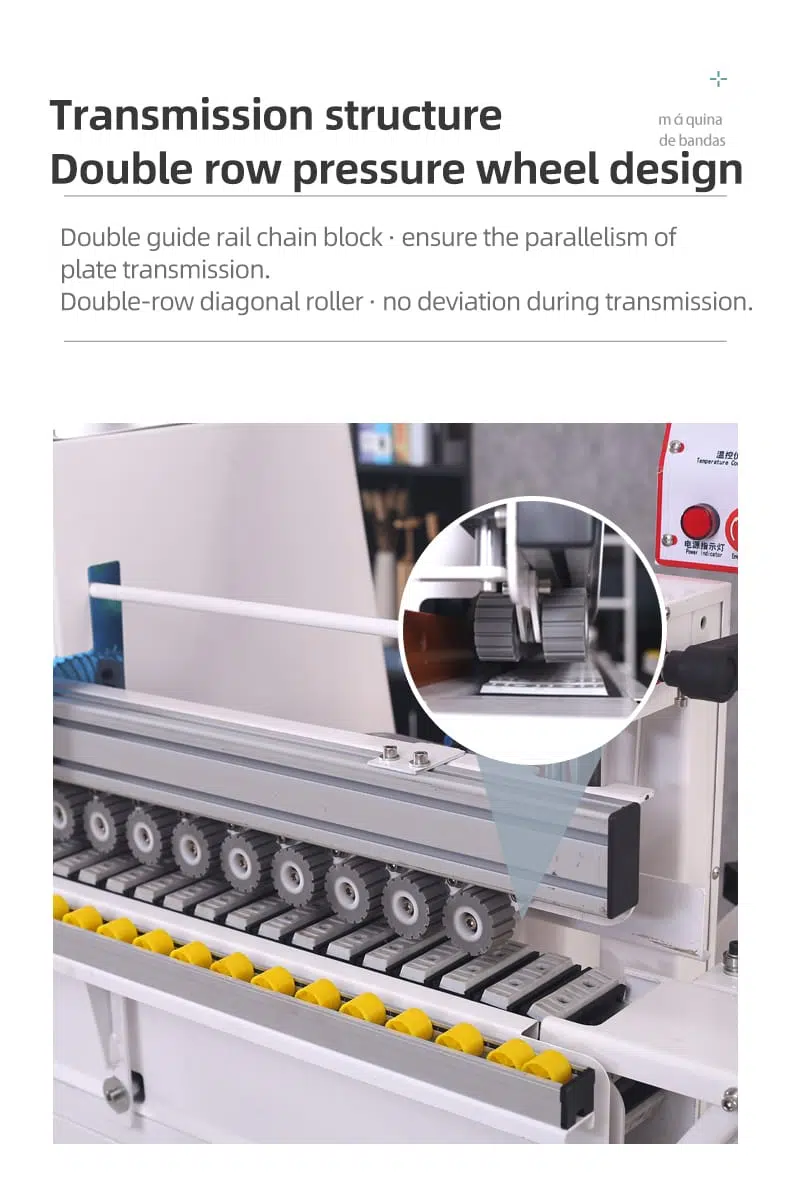

●Double-row pressure wheels
●Automatic feeding with crawler belts

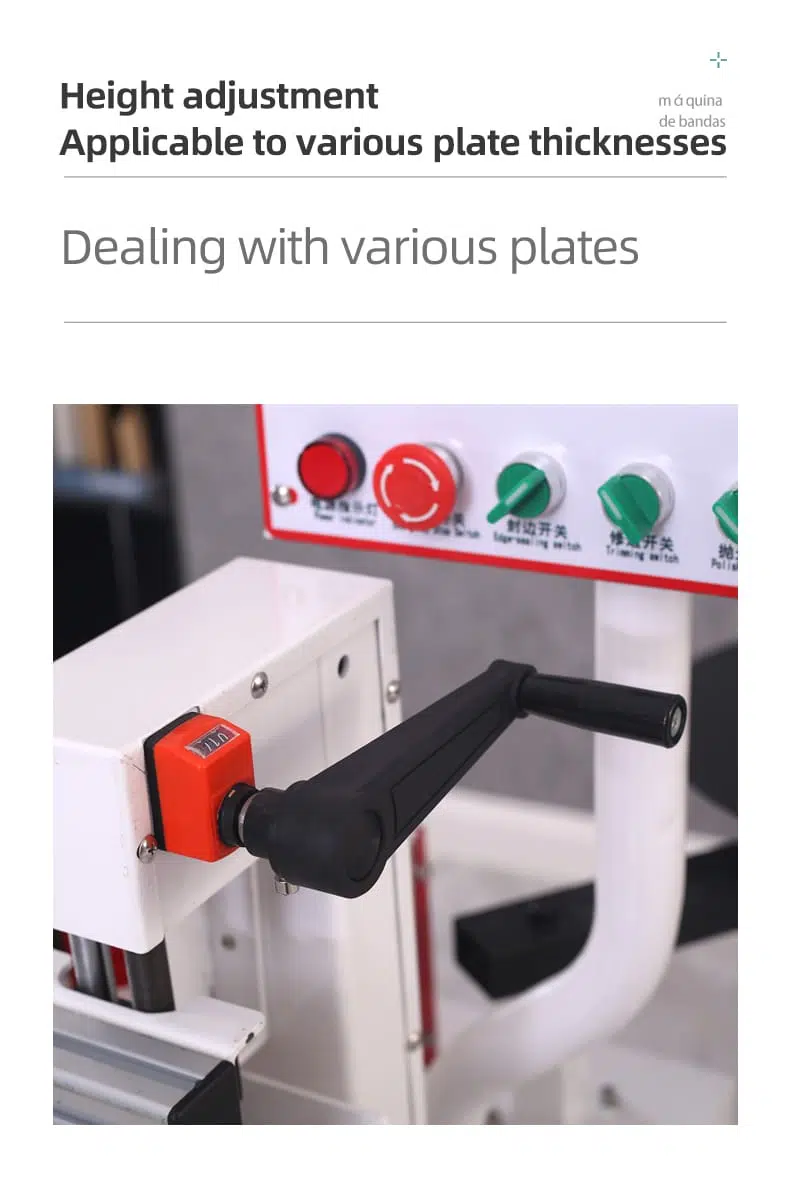

●Handle height adjustment, digital display of code meter
●Gear transmission glue pot
●Spindle silent motor
●Automatic belt breaking

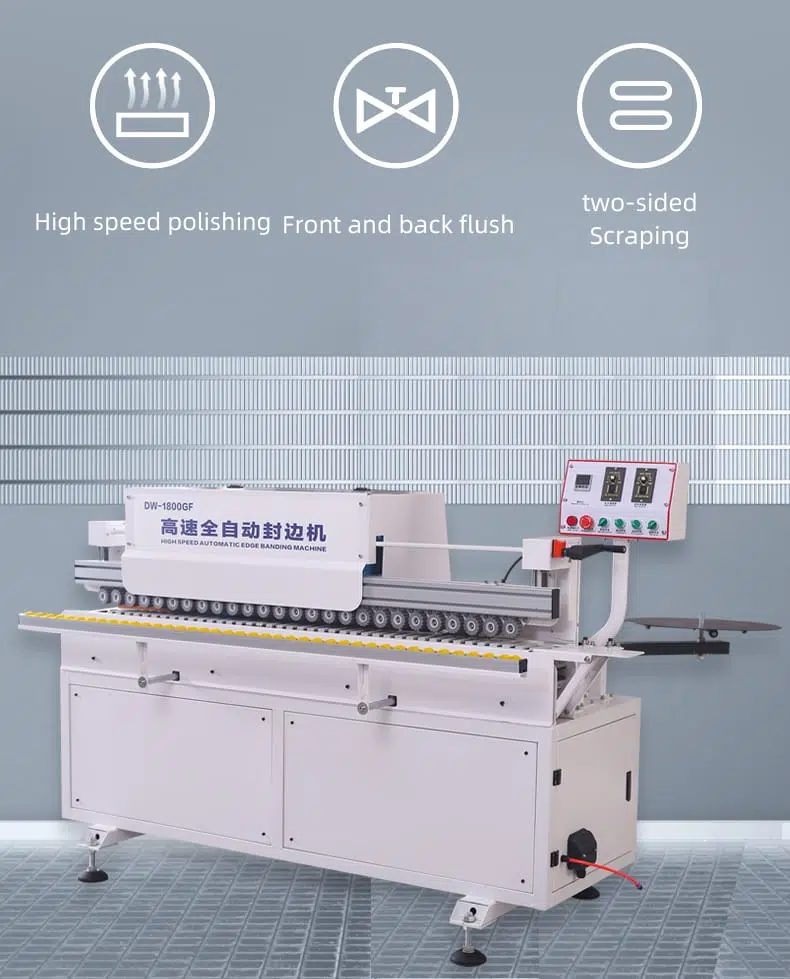

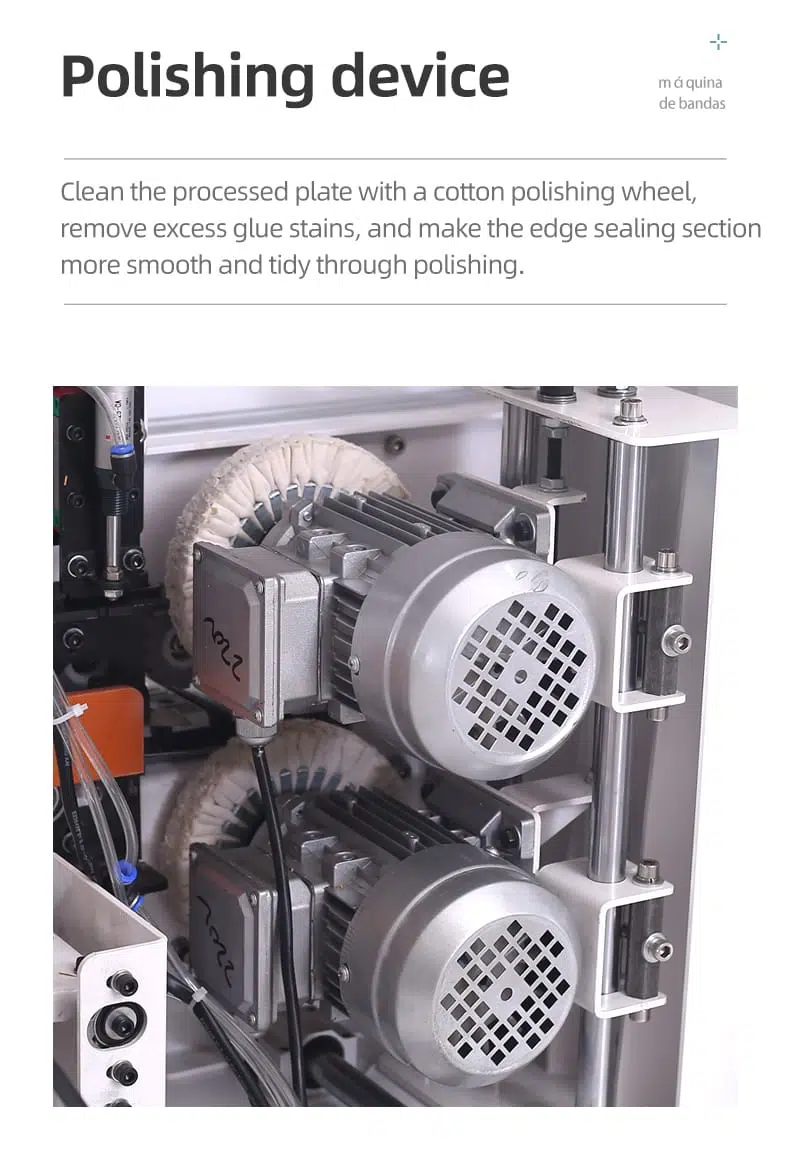

●Double-sided polishing and trimming
●Aluminum alloy integrated pressure beam
●Stretching wood board auxiliary device
●Better effect and efficiency

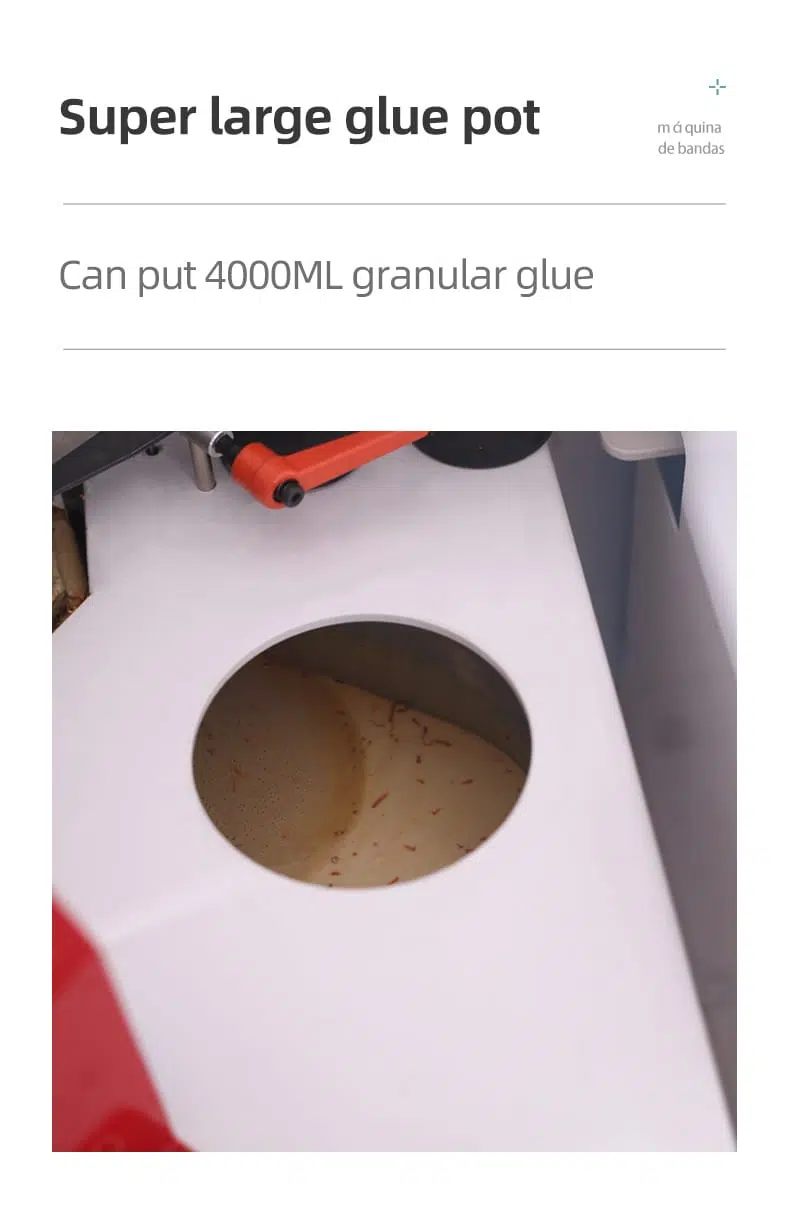

●Glue pot capacity : 4000ml
●Product Size : 220*65*125CM
●Product weight : 320KG

PVC Straight Automatic Edge Banding Machine Edge bander Machine for Furniture

DW1800 automatic edge banding machine advantages:

● Adopt imported motor and high quality electrical component.

● High precision and work efficiency.

● Automatic and precise gluing procedure as well as integrated double finish.

● Glue evenly, conveying stability.

● All the working area and specifications can be customized according to your requests.

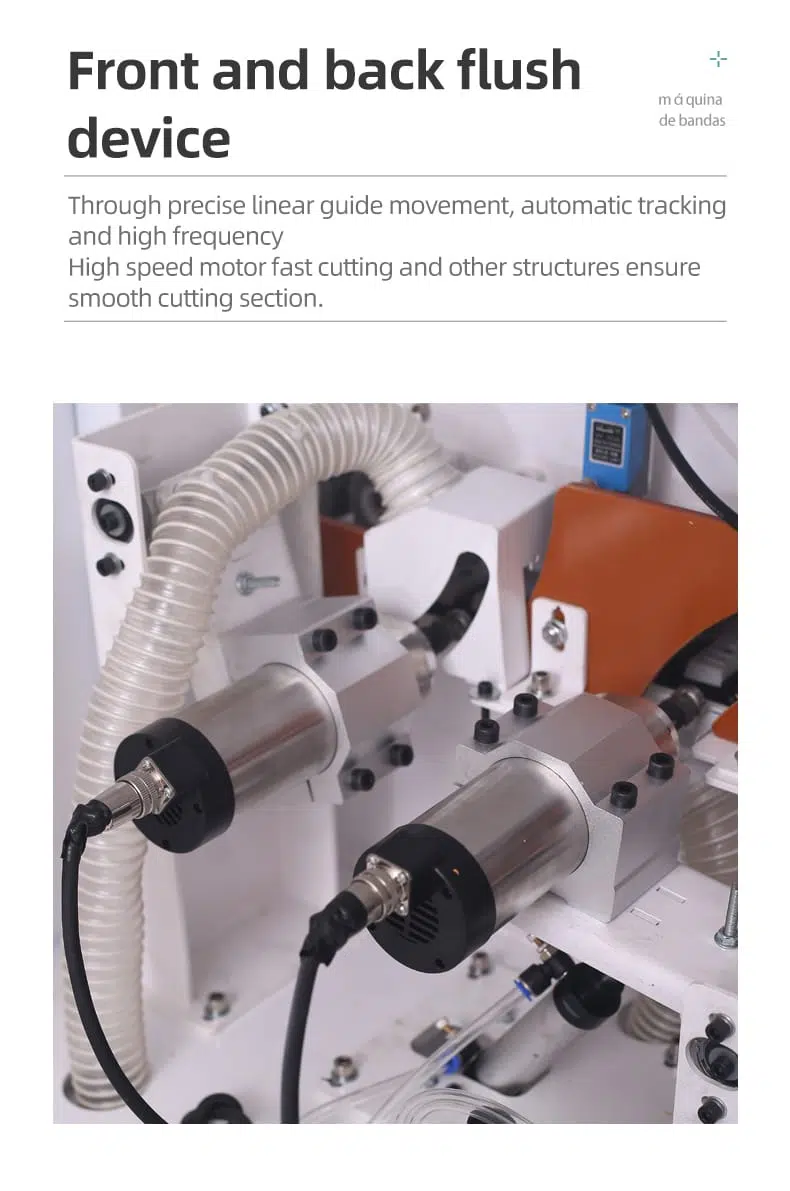

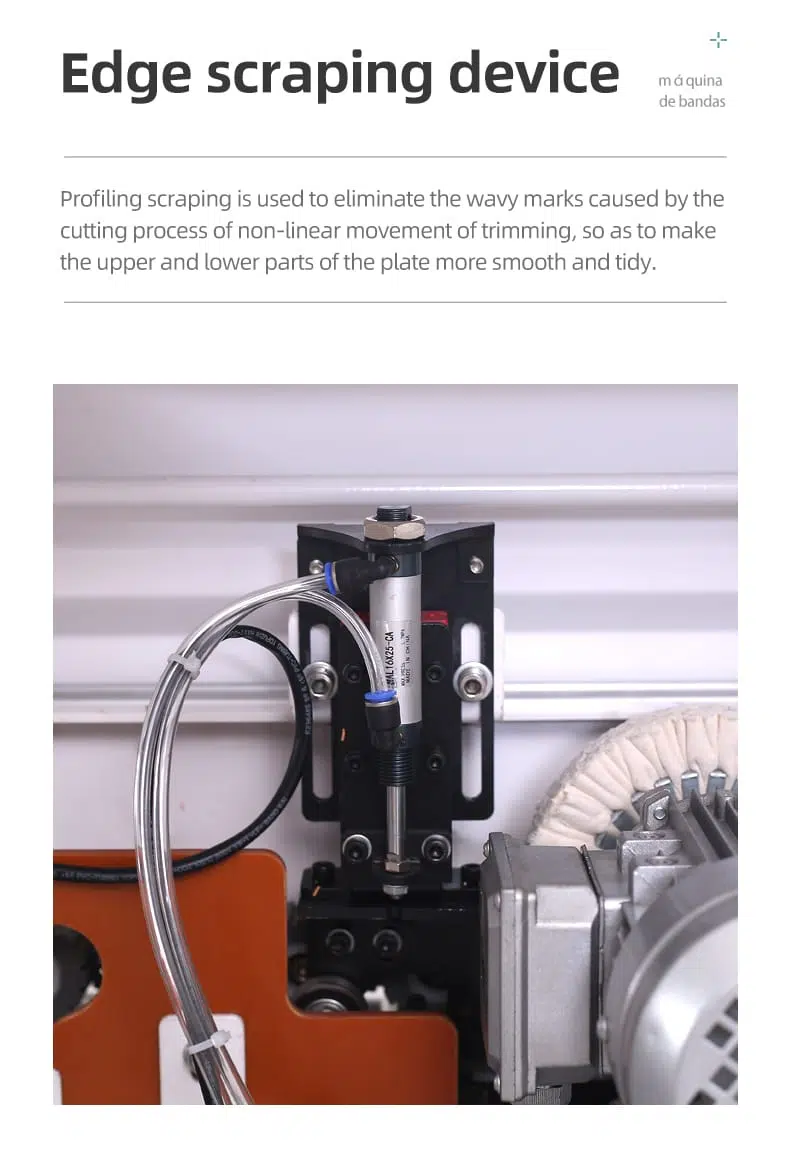

1. It can achieve the gluing, end cutting, rough trimming, fine trimming, tracking, scraping and polishing functions automatically.

2.It applies glue in a stable and uniform way.

3. Profile tracking function rounds the four corners, making them more smooth and safer.

4. Automatic operation greatly improves edge banding efficiency and saves labor costs.

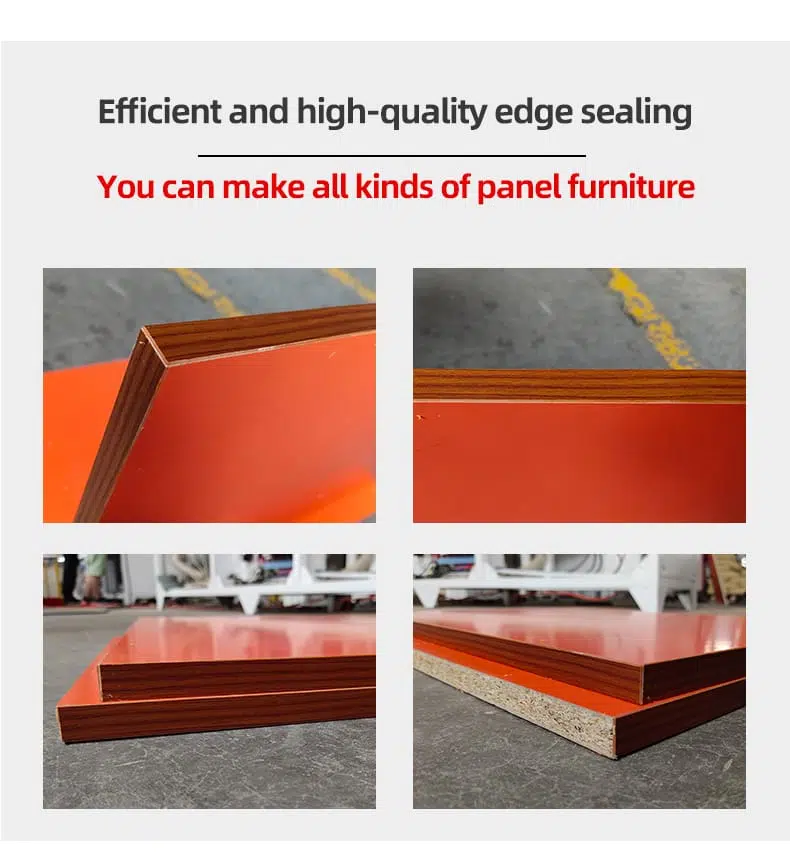

5. Suitable for processing all kinds of MDF, particleboard, plywood, ABB boards, PVC panels, organic glass plates and solid wood and other wood structure, and hardness of a similar plate.

6. Mobile table guide for the roll-ball differential structure, high positioning accuracy.

7. Mobile workstations with high-strength extruded aluminum alloy, high strength, non-deformation.

8. Mobile table surface oxidation treatment, beautiful and wearable.

9. The main blade and a crossed angle of inclination from the precision instrument visual display.

Service and Guarantee:

  • Customization of color, logo, shape, etc. is available.
  • Become an exclusive regional agent for Ruiqi.
  • Free photo and video services for agents.
  • Lifetime technical support and one-year warranty included.
  • Various payment methods and door-to-door shipping offered.

重量 320 公斤
尺寸 220 × 65 × 125 厘米

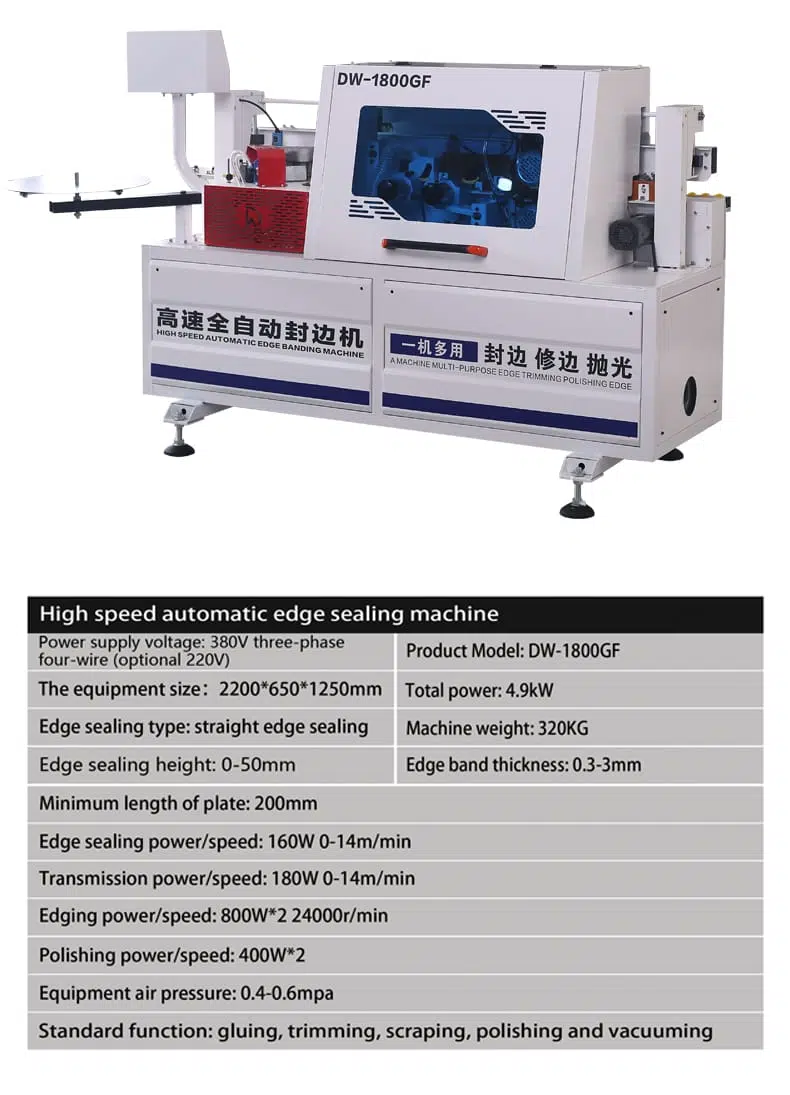

Model

DW1800

Total power

4.9KW

Voltage

380V/220V/415V

Minimum length of sheet

20CM

Minimum width of sheet

10CM

Edge banding height

0-50MM

Edge banding thickness

0.3-3MM

Edge power/speed

160W 0-14M/min

Air source pressure

0.4-0.6Mpa

Transmission power/speed

180W 0-14M/min

Glue pot capacity

4000ml

Trimming power/speed

800W*2 24000r/min

Vacuum power

550W

Package Size

207*84*128CM(Heightened and widened bottom corners)
