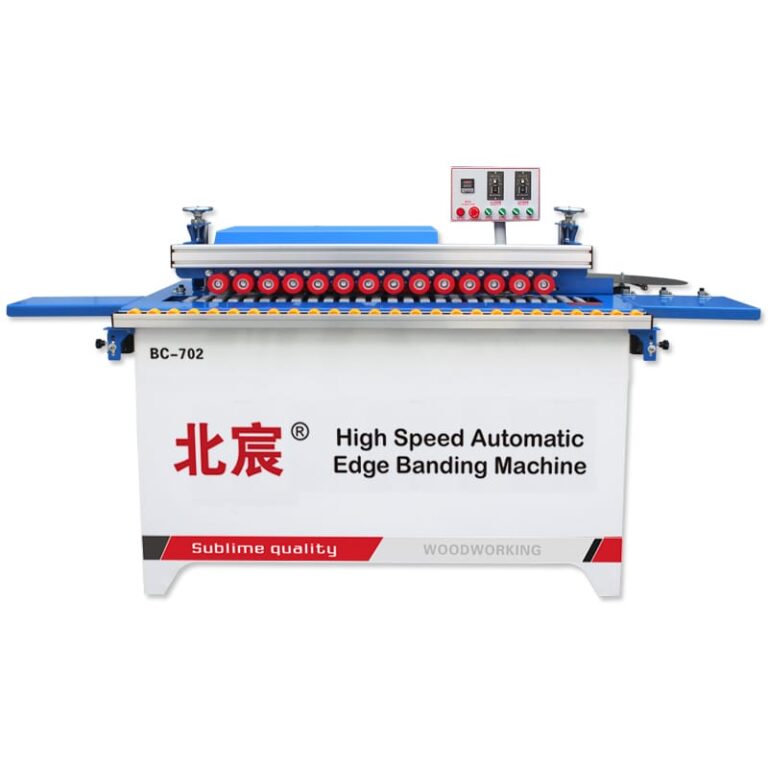

DW702 High-Speed Automatic Edge Banding Machine
The Beichen DW702 High-Speed Automatic Edge Banding Machine is utilized for high-efficiency and high-precision applications in current woodworking. The machine is designed to band straight panels’ edges with a handsome, strong, and clean finish. It is suitable for applying to different kinds of material including PVC, ABS, melamine, wood veneer, and acrylic.
Main Features and Advantages
High-Speed Operation: DW702 operates at high speeds, with high production throughput.
Automatic Functionality: Work is reduced in edge banding with less manual intervention and defect.
Precision Edge Application: Accuracy and consistency in applying edges are ensured, thereby ensuring quality finished products.
Versatile Material Compatibility: Highly compatible with various edge banding materials with versatility at the point of production.
Technical features of DW702 Edge Banding Machine
Attribute\Descripcion
Condition：New
Form Size：Straight Edge Banding Machine
Warranty：1 Year
Core Parts：Motor, PLC, other equipment
Test Report of Machinery：Attached
Video Pre-outgoing-inspection：Attached
Marketing Type：General Product
Applicable Industry：Furniture, other plants
Weight：800 KG
Size：3600*800*1300mm
Gluing Mechanism：EQUIPPED
Additional Details
Straight-edge banding machines are needed for straight-edged panels to restore edge banding. The machines include a few main components:
Gluing Unit: Creates adhesive on the panel edge.
Edge Feeding: Automatically feeds edge banding material.

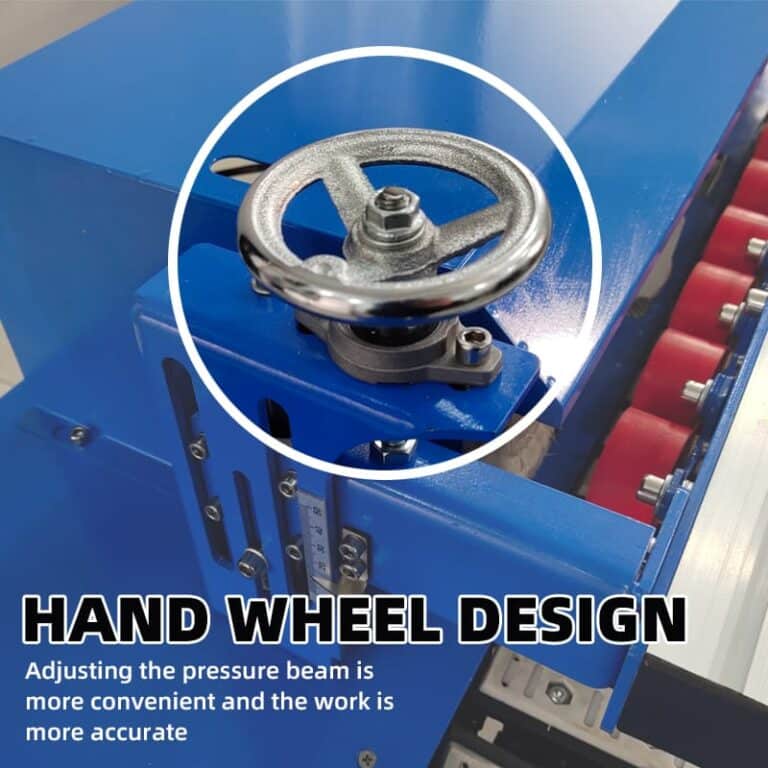

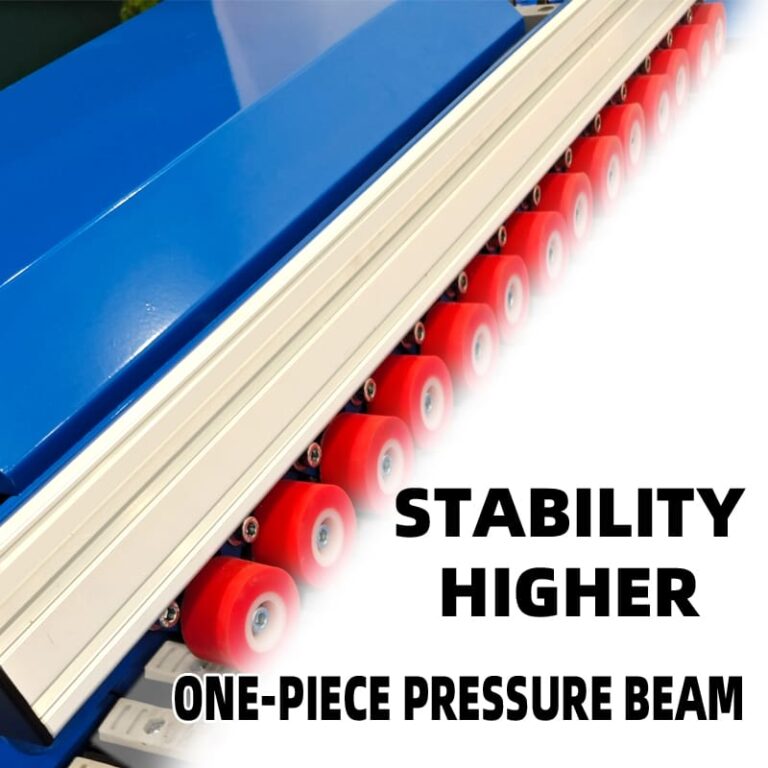

Pressure Rollers: Forces the edge banding onto the panel to create a good firm bond.
End Trimming: Trims edge banding to panel ends flush.
Top and Bottom Trimming: Trims top and bottom edges of overhanging edge banding.
Buffing: Buffs edges to finish.
Scraping: Scraping will be required when edging banding PVC and ABS.
Beichen
Beichen is committed to providing world-class woodworking machinery that addresses the demands of modern manufacturing. DW702 High-Speed Automatic Edge Banding Machine is a shining example of this commitment with its efficient and reliable edge banding solution.
